Atten GT-5200P Multifunctional Desoldering Station
1.Built-in RS485 interface for computer control.
2. Very fast heat-up: from room temperature to 350 Celsius degree
3. ESD-safe design, low-voltage heating completely separated from the power supply
if you want to know wholesale discount price,please contact us by e-mail.
Note:
If your shipment is a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area URL:http://remoteareas.dhl.com/jsp/first.jsp
Description

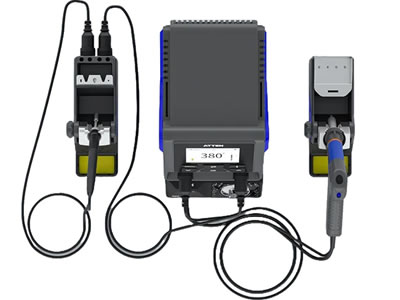

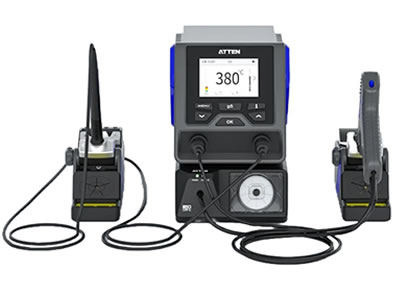

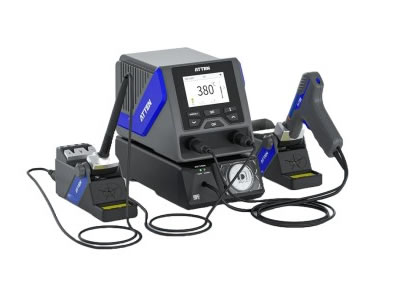

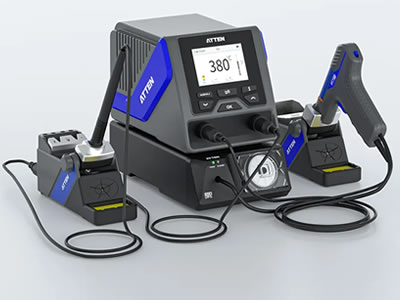

The Atten GT-5200P is a multifunctional desoldering station with a dual-channel suction soldering station with an LCD display. The desoldering station includes a built-in vacuum suction pump and has a power of 200W. The GT-5200P uses integrated soldering tips, has rapid heating and the pluggable heater design is easy to replace. The device is easy to operate with the comfortable silicone buttons and it has 3 sets of shortcut temperatures for easy operation. Furthermore, the desoldering station has an auto standby and sleep function and it has a password protection setting.
The GT-5200P includes the GT-510 negative pressure generator that generates the suction used by the vacuum.
GT-5200P station has both a channel for connecting the desoldering gun to the vacuum pump and a conventional soldering channel for connecting various soldering tools such as soldering irons or tweezers. Both channels can be used in parallel.
The Atten GT-5200P soldering station has a high-quality heating element with 200 watts of power with a built-in vacuum suction pump and is supplied with suitable PC software for control. The soldering station automatically lowers the temperature to 150Celsius Degree when not in use. Three different desoldering temperatures can be easily programmed individually and can be called up directly by pressing the corresponding selection button. The desoldering station is supplied with two separate soldering holders.
Features
- Built-in vacuum suction pump.
- The maximum output is 150 W.
- Can automatically recognise the connected soldering tools and upload the corresponding parameters.
- Built-in RS485 interface for computer control.
- Software for control via a PC
- compatible with various types of soldering tools
- Intuitive menu navigation
- Display of parameter data and information in the form of a graphic on a large display
- 3 adjustable temperatures available at the touch of a button
- Very fast heat-up: from room temperature to 350 Celsius Degree in only approx. 7 s
- High-contrast multifunction LC display for status and programming display
- Readiness for operation checked by bar display
- flexible connection cable with plug-in system
- Temperature freely selectable between 150 Celsius Degree and 480 Celsius Degree
- Precise temperature calibration possible, calibration range +- 50 Celsius Degree
- Temperature stability: +- 2 Celsius Degree (without load / MCU-controlled temperature calibration)
- Temperature setting possible in 5-degree or 1-degree increments
- Automatic, adjustable temperature reduction during soldering breaks to 150 Celsius Degree (1-120 min)
- Protection against temperature adjustment
- ESD-safe design, low-voltage heating completely separated from the power supply
- Freely positionable holder
- Intelligent detection of working or non-working status.
| Model | GT-5200P |
|---|---|
| Power output | 200 watts |
| Temperature range | 150 Celsius Degree - 500 Celsius Degree |
| Temperature offset range | + -50 Celsius Degree |
| Temperature setting | 5 digits (standard) / 1 digit (fine-tuning) |
| Temperature stability | 2 Celsius Degree |
| Heating element | with silver alloy |
| ESD protection | Yes |
| Earthing resistance | < 2 Ohm |
| Earth potential | < 2 mV |
| Weight | 5.68 kg |
| Channel | 1 |
| Power supply | 230 V / 50 Hz |
| RoHS | Compliant |
What's included in the package box:
