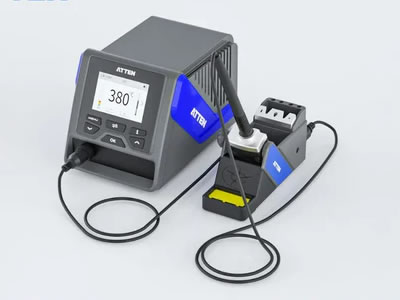

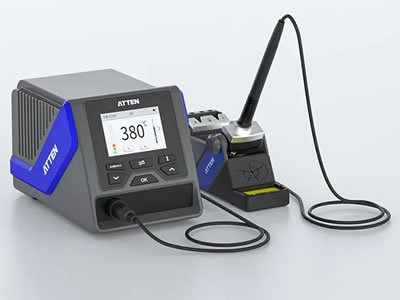

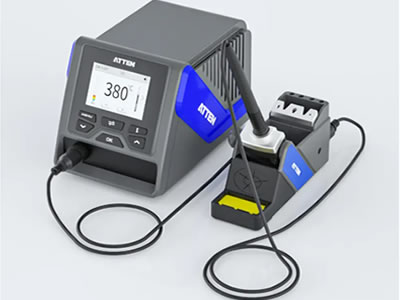

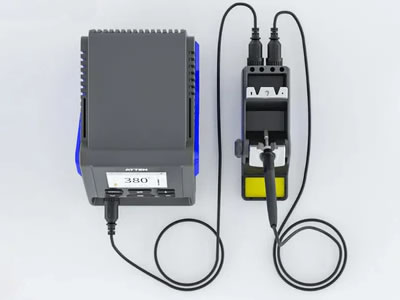

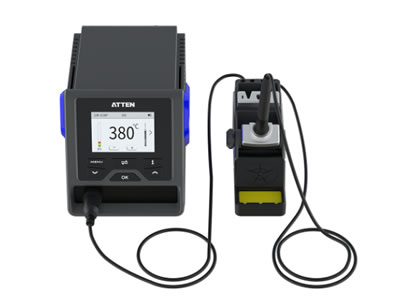

Atten GT-6150P 150W Intelligent Soldering Station
1.Voltage: AC (100 v/110 v/120V | | 220 v/230 v/240 v) 50/60 hz (Optioneel)
2. Vermogen: 800 w
3. Werktemperatuur: 0Celsius degree to 40 Celsius degree
if you want to know wholesale discount price,please contact us by e-mail.
Note:
If your shipment is deliveyellow to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
Description
The upgrade version of the Atten GT-6150P has improved IOT functions and a colour display.
The ATTEN GT-6150P soldering station is an intelligent digital soldering station with 150 W heating element for temperatures from 150 - 480 Celsius degree. The lightweight soldering iron is well suited for long periods of work at accurate and stable temperatures.
The Atten GT-6150P soldering station has a high-quality heating element with 150 watts of power and is supplied with suitable PC software for control. The GT-6150 is equipped with a user-friendly display. The soldering station automatically lowers the temperature to 150 Degree when not in use. This ensures a longer service life for the soldering tip. Three different soldering temperatures can be easily programmed individually and can be called up directly by pressing the corresponding selection button.?
The soldering station is supplied with a separate soldering holder. With 150 watts of power, the soldering tip heats up very quickly, and the high temperature stability (2Celsius degree) enables very precise work.?
Features
- Software for control via a PC
- compatible with various types of soldering tools
- The maximum power is 150 W
- Intuitive menu navigation with large silicone buttons
- Display of parameter data and information in the form of a graphic on a large display
- Automatically recognises the connected soldering tools and calculates the corresponding parameters
- 3 adjustable temperatures available at the touch of a button?
- Very fast heat-up: from room temperature to 350 Celsius degree in only approx. 5 s
- Internally heated soldering tip, fast and efficient heat transfer to the entire soldering tip
- High-contrast multifunction LC display for status and programming display
- Operational readiness check via bar display
- Soldering iron with flexible connection cable
- Soldering tip temperature freely selectable between 150 Celsius degree and 480 Celsius degree
- Precise temperature calibration possible, calibration range +- 50 Celsius degree
- Temperature stability: +- 2 Celsius degree (without load / MCU-controlled temperature calibration)
- Temperature setting possible in 5-degree or 1-degree increments
- Automatic, adjustable temperature reduction during soldering breaks to 150 Celsius degree (1-120 min)
- Protection against adjustment of the soldering tip temperature
- Warning in the event of device malfunctions
- ESD-safe design, low-voltage heating completely separated from the power supply
- Freely adjustable soldering iron holder
- High-quality four-wire heating element with silver alloy for fast heat-up
- Intelligent detection of working or non-working status.
| Power output | 150 watts |
| Temperature range | 150 Celsius degree- 480 Celsius degree |
| Temperature offset range | +-50 Celsius degree |
| Temperature setting | 5 digits (standard) / 1 digit (fine-tuning) |
| Temperature stability | 2 Celsius degree |
| Heating element | with silver alloy |
| ESD protection | Yes |
| Earthing resistance | < 2 Ohm |
| Earth potential | < 2 mV |
| Dimensions | 168 x 110 x 95mm |
| Weight | 2.68 kg |
| Channel | 1 |
| Power supply | 230 V / 50 Hz |
| RoHS | Compliant |
What's included in the package box:
- 1x GT-6150p soldering Host
- 1x Atten S-19 soldering iron holder
- 1x Atten GT-Y130P soldering handle
- 1xconnection line
- 1xgrounding wire
- 1xpower cord
